Export Grid

The Export Grid Screen is accessed from the Main File Menu or by entering ALT-F+E. If there is a visible grid in your TrackPro application the screen below will open.

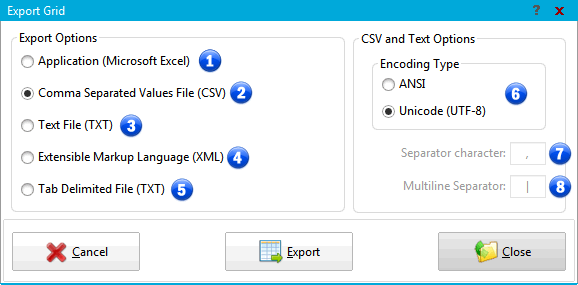

Export Grid Screen

1 - Application (Microsoft Excel)

This option will export the data directly to a Microsoft Excel application instance without creating a file. If desired, you may save the file in any format that Microsoft Excel supports. CSV and text options will not be available.

2 - Comma Separated Values (CSV)

When using this option, the CSV and Text Options will be enabled. After selecting the desired options, you will be prompted for a file name. After entering the file name, the data will be exported to the file in,separated value format.

3 - Text File (TXT)

The TXT option is identical to the comma separated values option except that the file will be exported with a .TXT file extension.

4 - Extensible Markup Language (XML)

The XML export has no options. the file will be exported using the W3C version 1.0 XML specification with Unicode (UTF-8) encoding.

5 - Tab Delimited Text File (TXT)

The TXT export has no options. the data will be exported in Tab Delimited format using Unicode (UTF-8) encoded.

6 - Encoding Type

There are two options for encoding: ANSI and Unicode (UTF-8). Unicode (UTF-8) is the default and should be adequate for most uses.

7 - Separator Character

You may enter the separator character that you prefer.

8 - Multiline Separator

You may enter the multiline separator that you prefer..

9 - Export

This control initiates the export operation.
